Details
Description

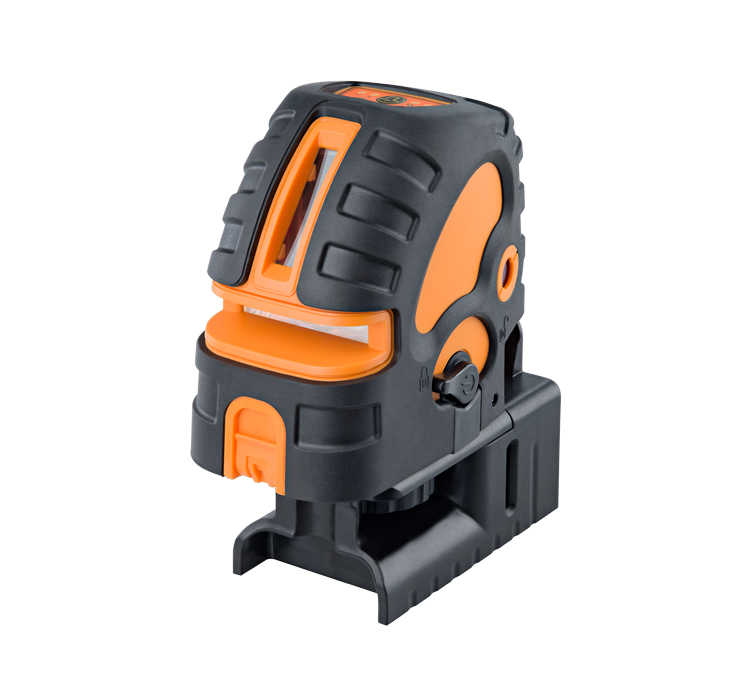

CrossPointer5 SP
Features
- 2 laser lines form a laser cross
- 5 laser points: back, left, right, ceiling, floor
- Plumbing function
- Multi-functional mount
- Strong magnets on the base
- Strap attachment, rotatable
- Use with receiver (optional)
- Self-levelling function can be locked for manual use
Supplied with
- Multi-functional mount
- Laser glasses
- Magnetic target
- Set of batteries
- Container
Product Information
Technical data
| Self-levelling range | ± 4° |
| Accuracy | ± 3 mm / 10 m |
| Line laser function | 1 laser cross: front |
| Working range w/o receiver | 30 m* |
| Working range with receiver | 80 m (opional) |
| Sector angle Hz-line | 155° |
| Sector angle V-line | 160° |
| Point laser function | 5 laser dots: back, left, right, up, down |
| Working range w/o receiver | 30 m |
| Power supply / Operating time | Alkaline / 7 h |
| Dust / water protection | IP 54 |
| Laser diode / Laser class | 635 nm / 2 |
| Temperature range | -10°C - +45°C |
| Size | 115 x 70 x 115 mm |
| * depending on room illumination |
