Geo-Fennel - FL 40-4 Liner

Geo-Fennel - FL 40-4 Liner

Excl. VAT: £195.00 Incl. VAT: £234.00

Availability: In stock

Qty:

Quick Overview

The starter model for professionals!

Using the latest laser diode technology to ensure
optimum line visibility. 3 laser crosses at 90° to
each other connected by a horizontal laser line.

Click here for more details on this product (Takes you to the manufacturers website)

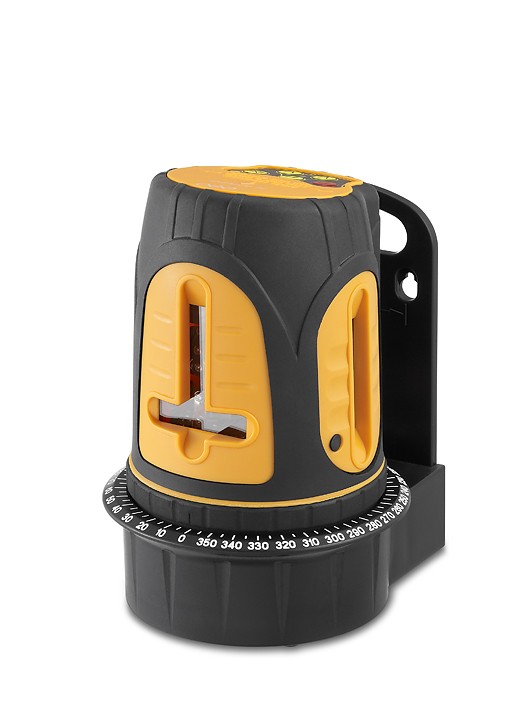

Geo-Fennel - FL 40-4 Liner

Double click on above image to view full picture

Details

FEATURES

1 horizontal and 3 vertical laser lines
Shut-off of self-levelling function for manual use (slope)
Locking device for safe transport
Magnetic connection from instrument to wall mount
Centering adapter for optimum positioning over a floor point
Visual and audible alarm when out of level
Use with receiver FR 55/FR 55-M (optional) to extend the working range up to 30 m

TECHNICAL DATA

Self-levelling range (side / side)	± 3,5°
Accuracy	± 3 mm/10 m
Working range without receiver	20 m*
Working range with receiver	30 m
Operating time	12 h
Power supply	3 x 1.5 V AA Alkaline
Visible laser diodes	4 x 635 nm
Laser class	3R
Weight	1,0 kg
*depending on room illumination
