Leica - Builder 200

Leica - Builder 200

Excl. VAT: £0.00 Incl. VAT: £0.00

Availability: In stock

Qty:

Quick Overview

Traditional layouts require many steps and manipulations. The Leica Builder reduces these steps. As such the Leica Builder 200 adds benefit by reducing the number of set-ups and offers laser-aided layouts up to 80m/260ft. Its serial interface allows connection to any 3rd party device/program. 3 languages loadable.
PRICE ON APPLICATION.

Click here for more details on this product (Takes you to the manufacturers website)

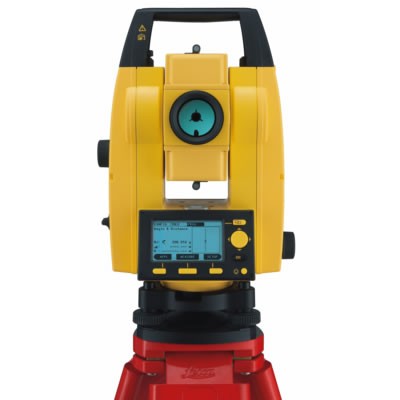

Leica - Builder 200

Double click on above image to view full picture

Details

Technical Data:

Builder Specifications	Leica Builder 100	Leica Builder 200	Leica Builder 300	Leica Builder 400	Leica Builder 500
Full Power Site Software					✓
Wireless Communication					✓
Prism Measurement Mode				✓	✓
Full alphanumeric keyboard				✓	✓
Volumes Calculation			✓	✓	✓
Data Im/Export to USB Stick			✓	✓	✓
PC/Handheld Interface		✓	✓	✓	✓
Laser Distance Measure		✓	✓	✓	✓
Control Line Setup		✓	✓	✓	✓
3 Languages	✓	✓	✓	✓	✓
Leveling Aid	✓	✓	✓	✓	✓
Dual Axis Compensator	✓	✓	✓	✓	✓
Laser Plummet	✓	✓	✓	✓	✓
Li-Ion Batteries	✓	✓	✓	✓	✓
Internal Memory [points]	-	-	15'000	50'000	50'000
Angular Accuracy	9'', 6''	9'', 6''	9'', 6''	9'', 5''	9'', 5'', 3''
Distance without reflector (90% reflective)	-	80 m	120 m	15 m	250 m
Distance to reflective tape (60mm x 60mm)	-	250 m	250 m	15 m	250 m
Distance to glass prism	-	-	-	500 (3500) m	500 (3500) m
