Geo Fennel - FMM 5

Be the first to review this product

Excl. VAT: £52.00 Incl. VAT: £62.40

Availability: In stock

OR

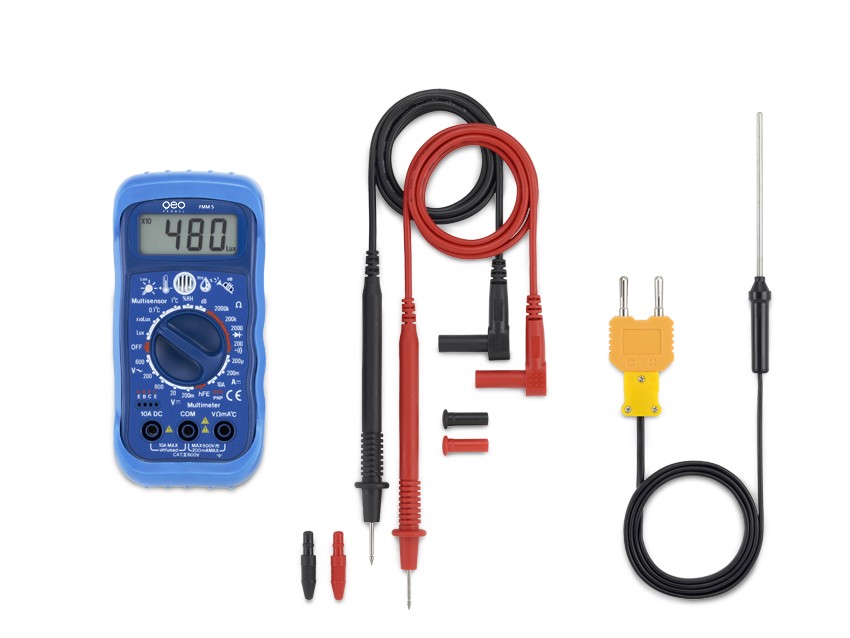

Geo Fennel - FMM 5

Double click on above image to view full picture

Zoom Out
Zoom In

Details

FEATURES
Trades and Tasks
  • Universal measuring device for:
  • DC, AC Voltage
  • DC current
  • Resistance of transistor hFE
  • Diode and continuilty test
  • Light, sound, humidity and temperature Measuring
  • Overload protection
TECHNICAL DATA
  Max. Range Resolution Accuracy
Multi-Meter     d=digit
Voltage DC 600V 0,1 mV +/- 0,5% +/- 2d
Voltage AC 600V   100 mV +/- 1,2% +/- 10d
Current DC 10A         0,1 uA +/- 1,0% +/- 2d
Resistance 20MΩ 0,1 Ω +/- 0,8% +/- 2d
Environmental
Light 20,000 Lux 0,1 Lux +/- 0,5% +/- 10d
Sond 100 dB  0,1 dB  +/- 3,5 dB
Humidity 95 % RH  0,1 % RH +/- 5 RH
Temperature -20°C to +200°C 0,1 °C +/-3% +/- 1d
  -20°C to +1300°C +1300°C    0,1°C +/-3% +/-5d
  1400°F         0,1°F +/-3% +/-2d
Dimensions 121 x 60 x 50 mm
Weight 0,28 kg
