Geo-Fennel No. 10 x 26

Excl. VAT: £129.00 Incl. VAT: £154.80

Availability: In stock

Qty:

Quick Overview

Robust and reliable. The No. 10 level series, a market leading product range for more than 15 years. Continuous development ensures the No. 10 is up-to-date and suitable for all levelling applications. Suitable for
builders, engineers and surveyors.

Click here for more details on this product (Takes you to the manufacturers website)

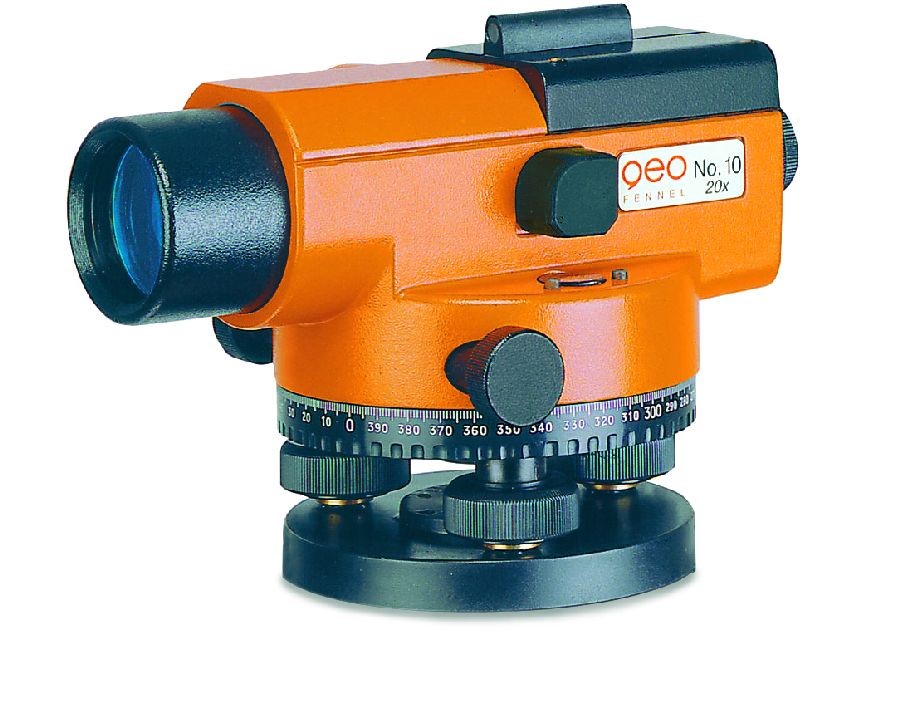

Geo-Fennel No. 10 x 26

Double click on above image to view full picture

Details

Nitrogen filled to prevent telescope condensation
Bubble reading prism for convenient observation of bubble at eye level
Optical sight for fast alignment to target
Robust metal housing for protection against damage
Suitable for both flat and domed head tripods

TECHNICAL DATA

	No. 10-26
Mean error for 1 km double levelling	2,0 mm
Telescope magnification	26 x
Objective diameter	40 mm
Field of view at 100 m	3,5 m
Shortest focussing distance	0,5 m
Working range of compensator	±15'
Levelling accuracy	±0,5"
Circular bubble	8' /2 mm
Horizontal circle	400gon/360°
Dust/water protection	IP 54
Weight	1,8 kg
