Geo-Fennel - FL 65 HP

Excl. VAT: £445.00 Incl. VAT: £534.00

Availability: In stock

Qty:

Quick Overview

Projects four vertical lines at 90° to each other and two 130°
horizontal lines crossing all four vertical lines. Easily tackles
all tasks in interior construction.

Click here for more details on this product (Takes you to the manufacturers website)

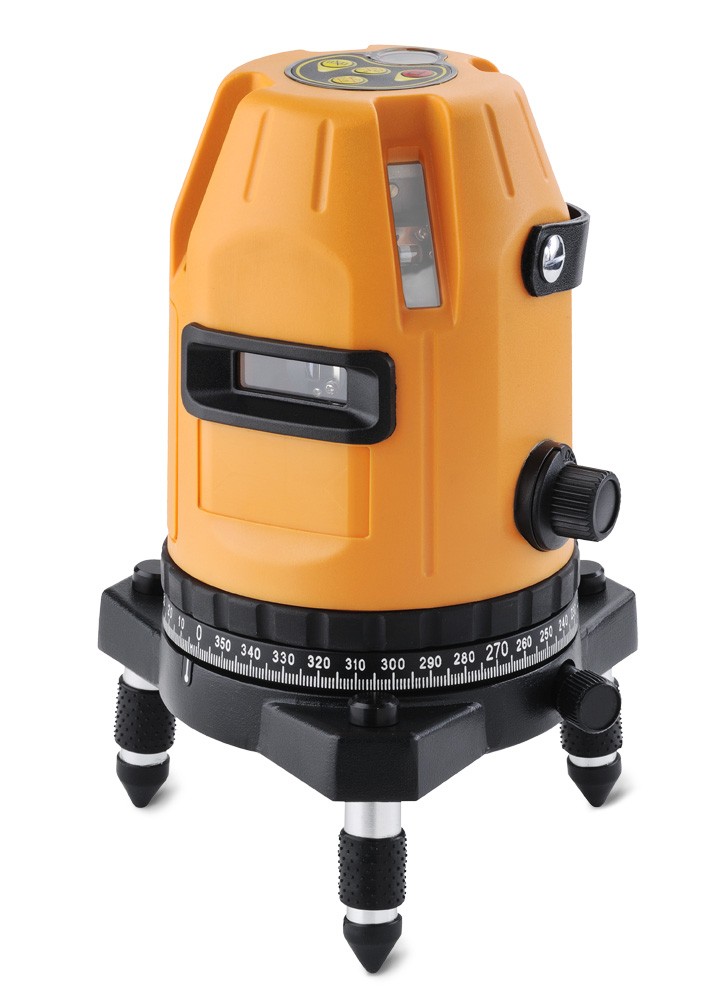

Geo-Fennel - FL 65 HP

Double click on above image to view full picture

Details

FEATURES

Dust/water protection IP 54
5 laser crosses
4 vertical lines at 90° to each other
2 horizontal lines
Laser cross to the ceiling
Plumb down beam
Self-levelling function can be switched off for manual use e.g. setting-out slopes
Use with receiver FR 55 (standard outfit) to extend working range up to 40 m
Adjustable 360° circle
Slow motion screw · Transport lock · Audible and visible alarm when out of level · Integrated floor tripod · 5/8“ thread for standard tripod

TECHNICAL DATA

Self-levelling range (side / side)	± 5°
Accuracy	± 2 mm/10 m
Working range without receiver	20 m*
Working range with receiver	40 m
Laser diodes/Laser class	635n m/3R
Power supply	NiMH - Alkaline batteries optional
Charger can also be used as power supply	Yes
Temperature range	-10 °C – +45 °C
Weight(instrument only)	1,45 kg
*depending on room illumination
