Geo-Fennel - FL 260 VA

Excl. VAT: £680.00 Incl. VAT: £816.00

Availability: In stock

Qty:

Quick Overview

Fully automatic horizontal and vertical laser. Compact ergonomic design and intuitive operation. A multi-functional laser for interior and exterior applications.

Click here for more details on this product (Takes you to the manufacturers website)

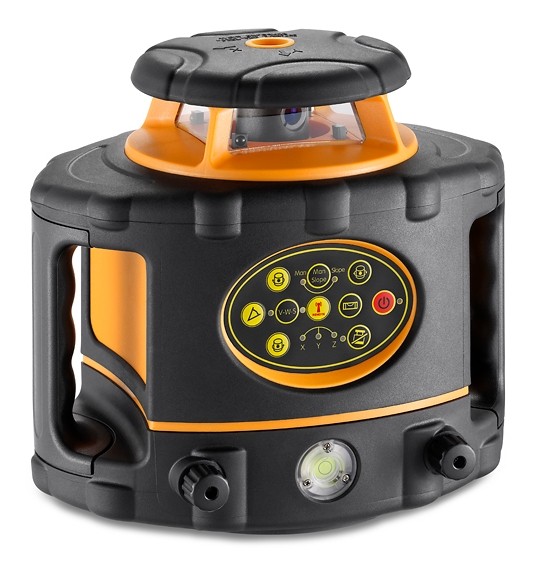

Geo-Fennel - FL 260 VA

Double click on above image to view full picture

Details

FEATURES

Visible laser beam
Adjusted slope setting (manual) up to ± 5° (± 9 %) in X and Y axis
Single slope setting up to ± 5° (± 9 %)
2 Rotating speeds
Variable scanning and laser point mode
Permanent 90° beam to zenith
V-W-S function combined with TILT function
Automatic TILT function
Remote control screen
NiMH batteries
Can be used with alkaline batteries
Li-Ion battery technology
Intelligent charger
Dust/water protection IP 66

TECHNICAL DATA

Self-levelling range	5°
Accuracy horizontal	± 0,5 mm/10 m
Accuracy vertical	± 1,0 mm/10 m
Working range with receiver Ø	600 m
Manual slope setting in X and Y axis	± 5° (± 9 %)
Rotating speed rpm	800, 300
Scan angle	0°, 10°, 45°, 90°, 180°
Single slope	One axis tilted, other axis self-levelled
Power supply	6,4 V*
Temperature range	-10 °C – +45°C
Dimensions	219 x 160 x 202 mm
Laser diode/Laser class	Red (HP Version)/3R
Dust/water protection	IP 66
Weight (instrument only)	2,6 kg
Automatic tilt function	yes
V-W-S function	yes
* with 6,4 V intelligent charger, battery can be charged externally, alkaline batteries can be used alternatively
