Description

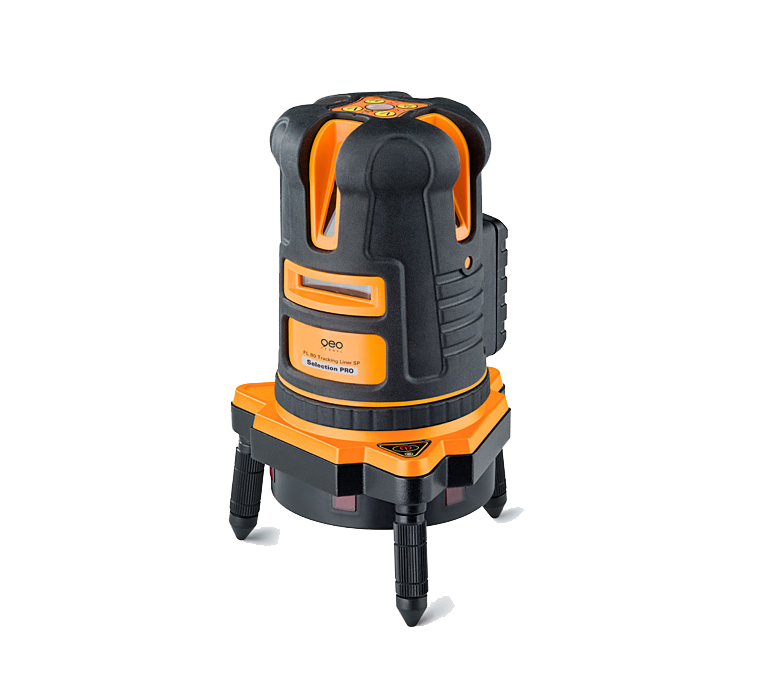

FL 80 Tracking Liner SP
Features
- 4 vertical lines at 90° to each other
- 1 horizontal line with a 130° arc
- Laser cross to the ceiling
- Plumb down beam
- self-levelling compensator with magnetic damping
- Tracking function up to 30 m
- 360° horizontal orientation in either motorized or manual mode
- Use with FR 57-TR receiver (incl.) to extend the working range up to 80 m (w/o tracking)
- Self-levelling function can be switched off for manual use
- Slow motion screw for fine adjustment
- Audible and visible alarm when instrument is out of level
Supplied with
- FR 57-TR receiver This receiver is required when using the tracking function but it can also be used as a standard receiver
- a floor tripod
- magnetic target
- Li-Ion battery pack with charger
- battery case for the optional use of Alkaline batteries
- 5/8“ tripod adapter
Product Information
Technical data
| Self-levelling range | ± 3° |
| Levelling accuracy | ± 2 mm / 10 m |
| Working range | 30 m |
| with receiver | 80 m |
| with tracking function | 30 m |
| Centering accuracy Tracking | ± 1 mm / 10 m |
| Power supply | Li-Ion |
| Operating time Laser | 8 h Li-Ion |
| Operating time Tribrach | 15 h Alkaline |
| Protection class | IP 54 |
| Laser diode | 635 nm |
| Laser class | 2 |
| Temperature range | -10° C to +45° C |
