Details
Features
Premium self-levelling horizontal rotating laser
- Easy and intuitive to use
- Robust rubberised housing with metal cover
- Working range 1200 m diameter
- Dust / water protection IP 66
- High accuracy of ± 0,5 mm / 10 m
- Automatic TILT alarm function
- VWS function (Vibration-WindSecurity)
- Auto-shut-off when out of level
- Electronic beam screen
- Manual slope setting of X and Y axis
- Li-Ion battery technology
Receiver’s
- FR 45
- FR 77-MM
- FR-DIST 30

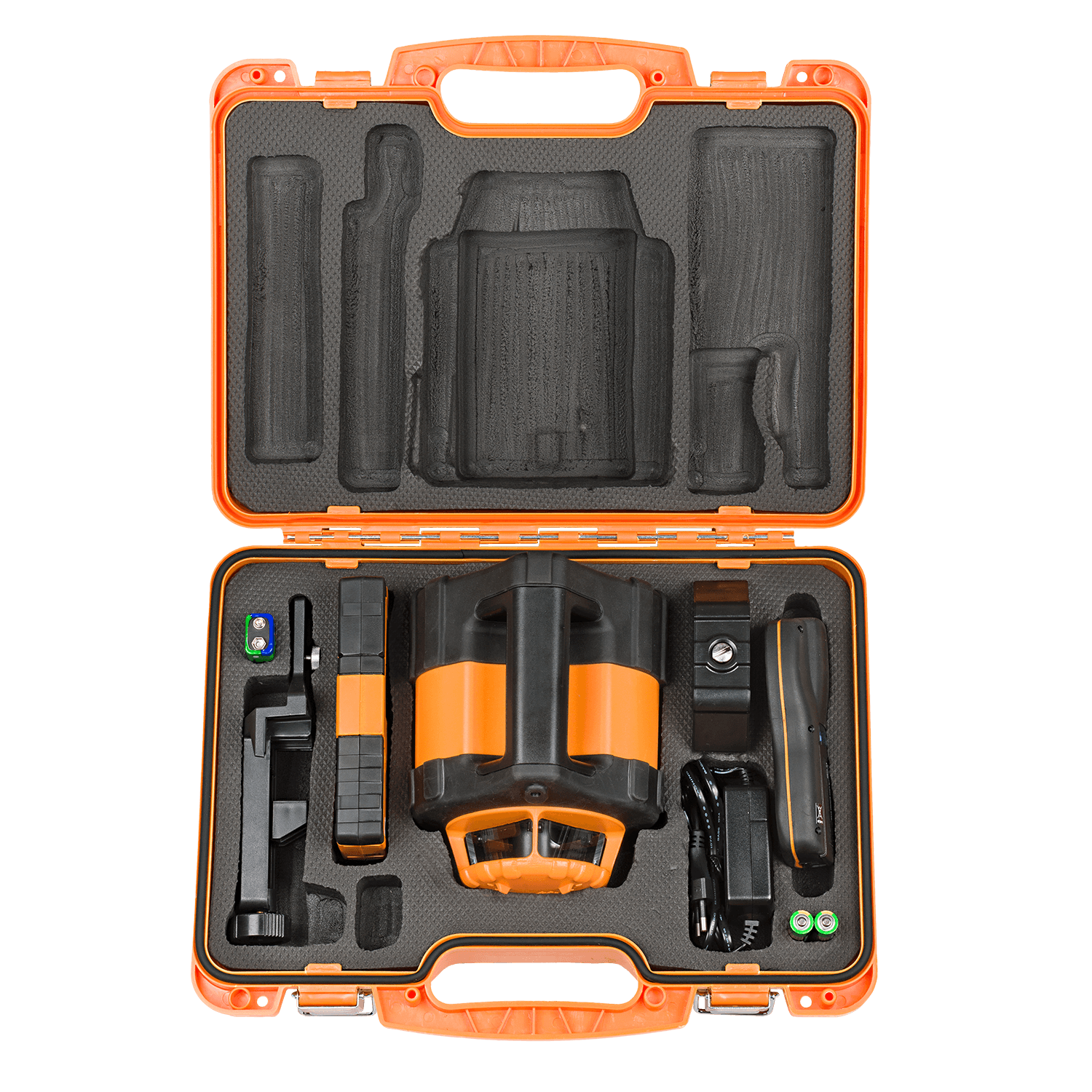

Included in scope delivery:
- Receiver FR 45 with clamp
- Li-Ion rechargeable battery with charge
- Battery case for alkaline batteries
- Container

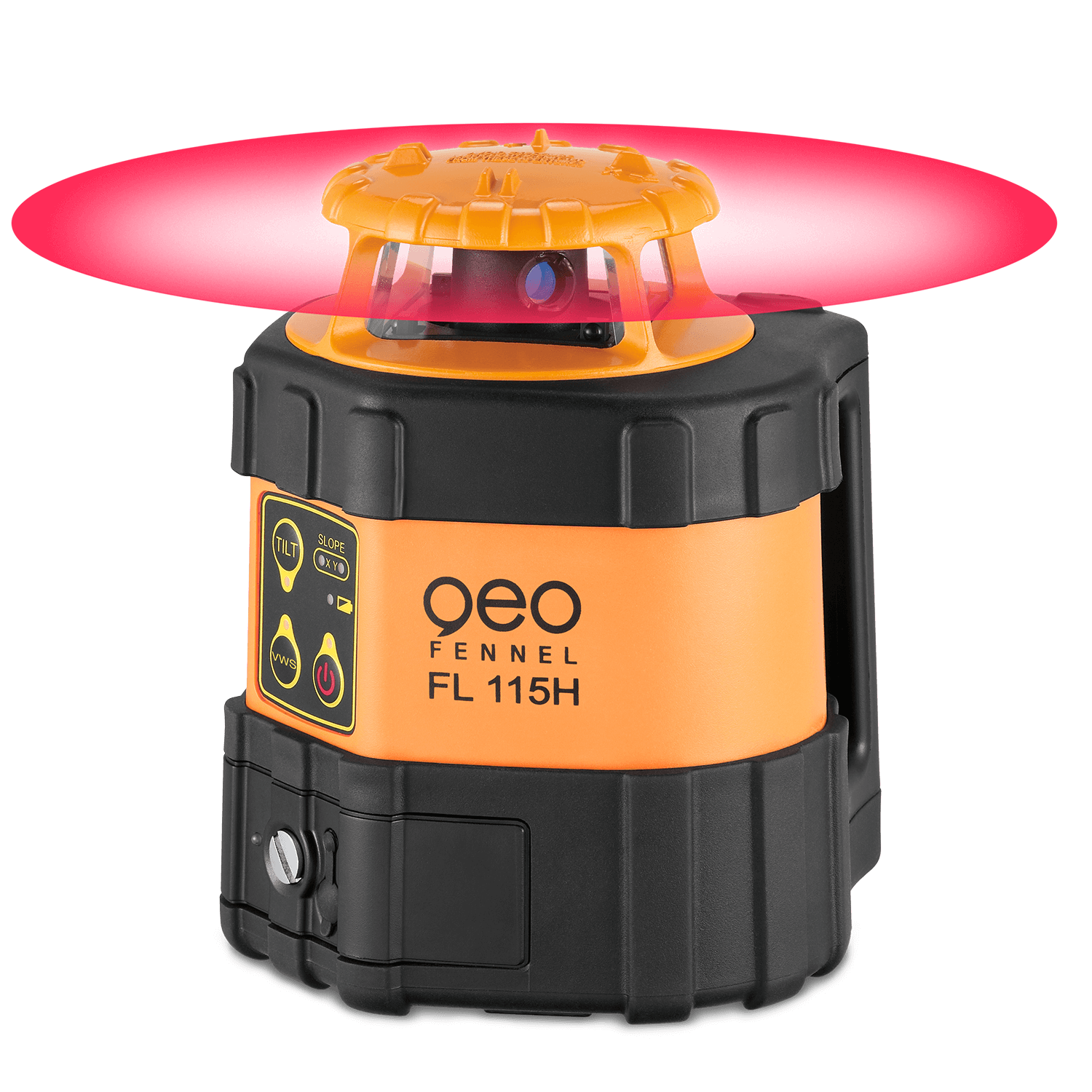

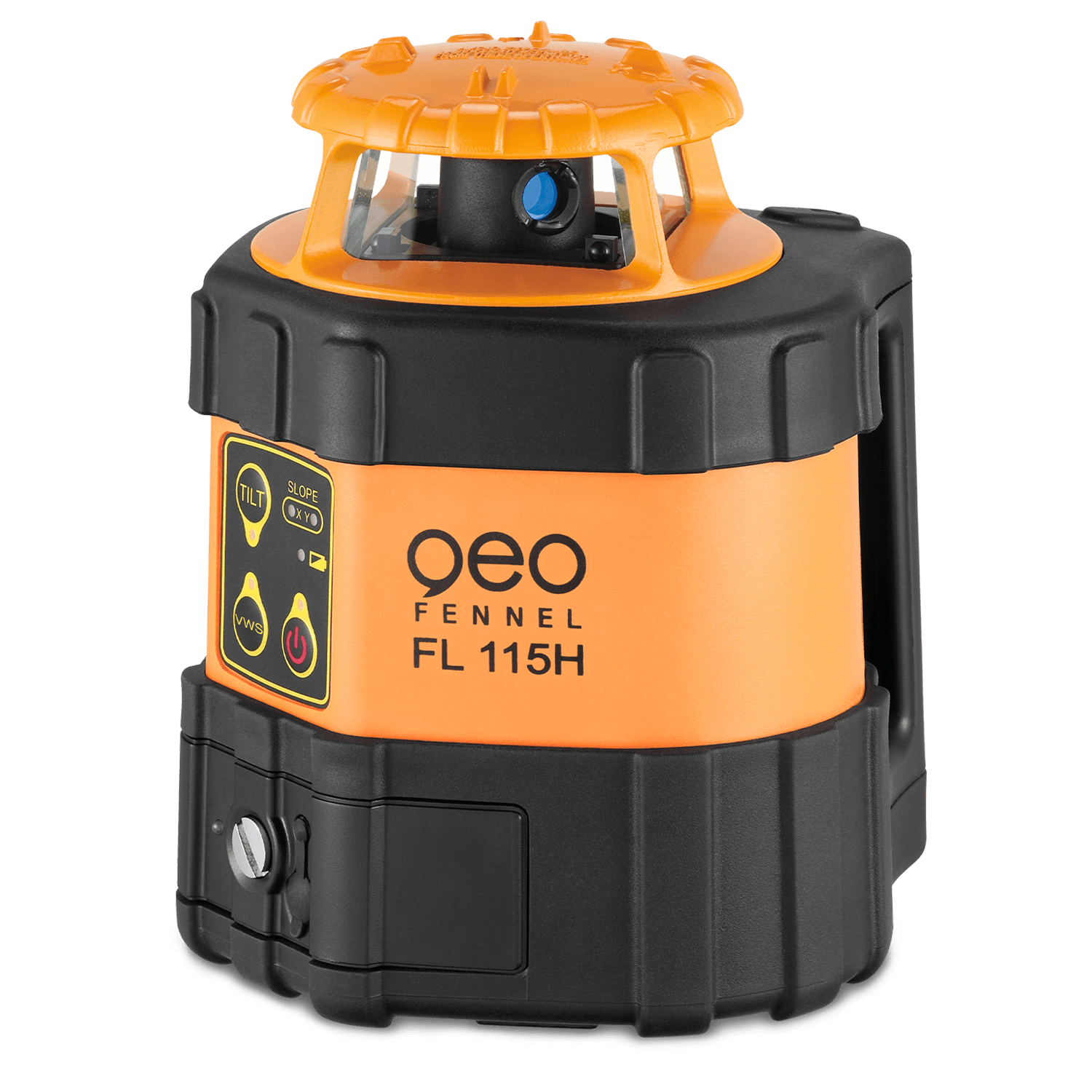

Properties: “FL 115H
| Laser diode: | red |
| Self-levelling: | horizontal |
| Visible laser beam: | red |
| Self-levelling range: | ± 5° |
| Accuracy horizontal: | 0,5 mm / 10 m |
| Working range without receiver: | Ø 60 m |
| Working area with FR 45: | Ø 1200 m |
| Working area with FR 77-MM: | Ø 900 m |
| Working range remote control: | IR 100 m |
| Grade: | manual |
| Slope setting manual X-Axis: | ± 5° (± 9%) |
| Slope setting manual Y-Axis: | ± 5° (± 9%) |
| Laser class: | 2 |
| Rotating speed rpm: | 800 |
| Operating time: | 26 h |
| Dust / water protection: | IP 66 |
| Masking (beam screen): | yes |
| Temperature range: | -20° to +50°C |
| TILT-function: | yes |
| VWS function: | yes |
