Details

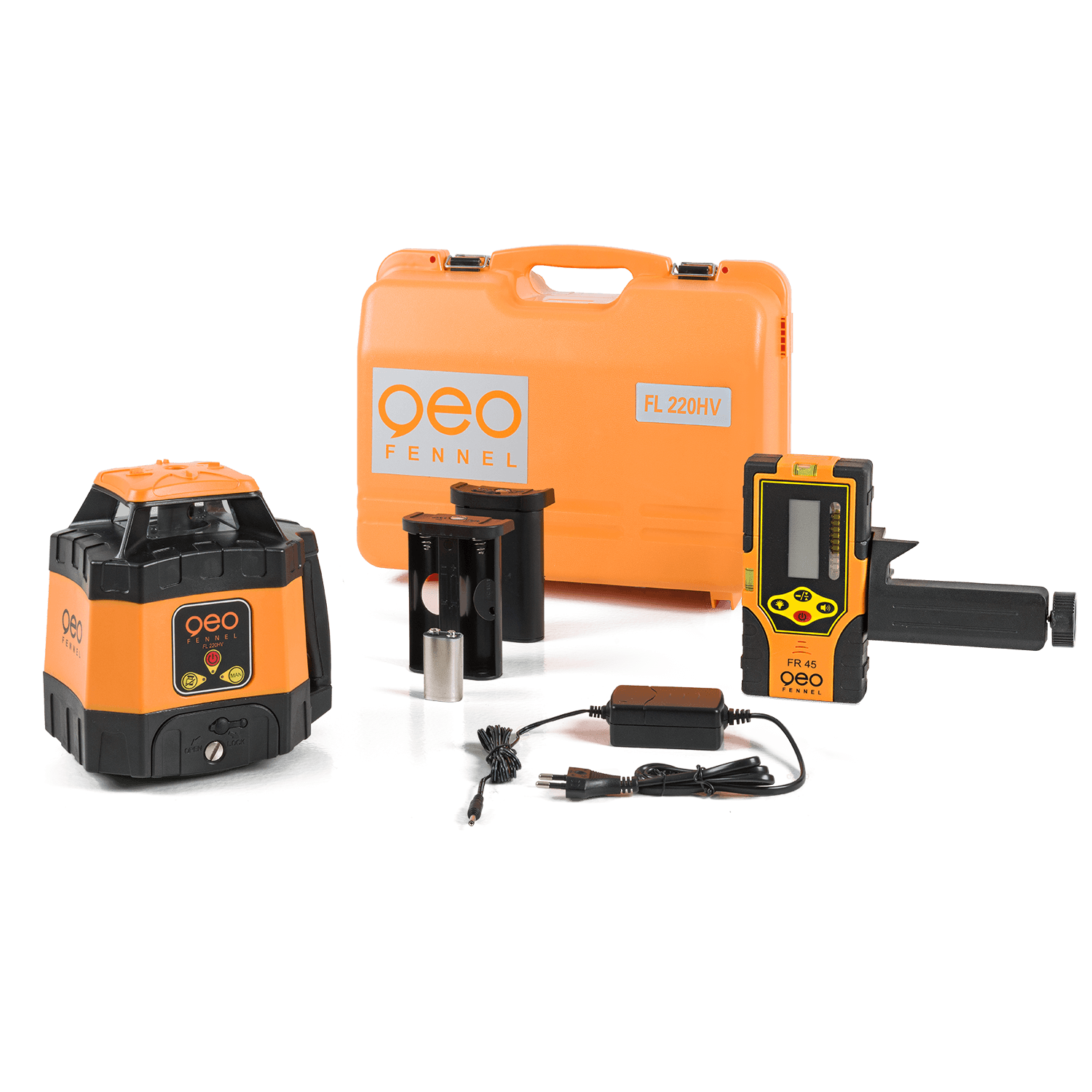

Included in scope delivery:
- Receiver FR 45 with clamp
- Rechargeable battery (NiMH)
- Intelligent battery charger
- Battery case for alkaline batteries
- Carrying case
Set
- No Set
- with tripod and staff in container

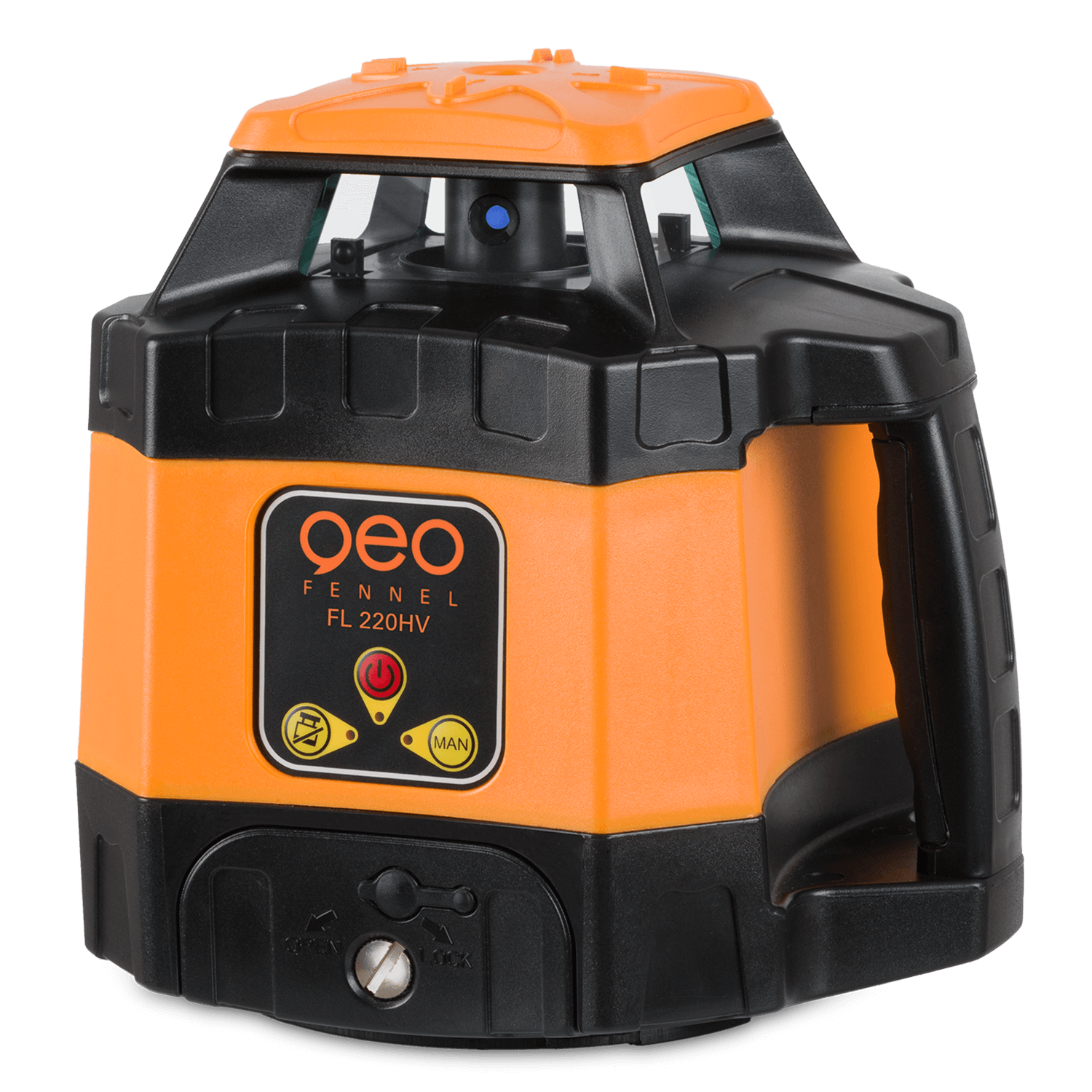

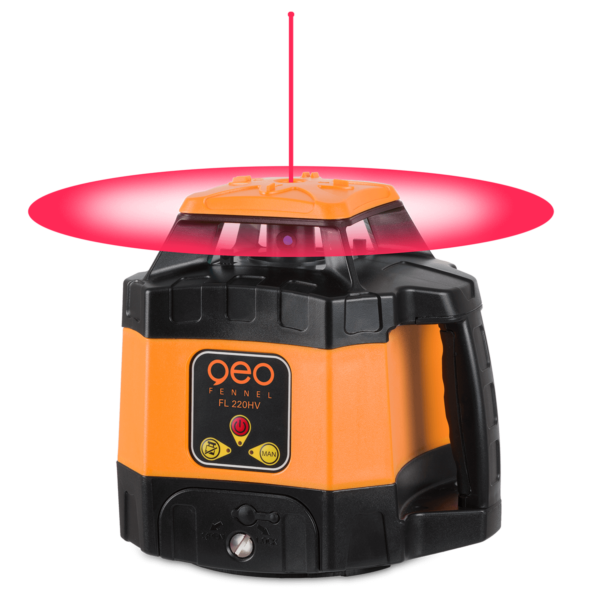

Properties: “FL 220HV”
| Laser diode: | red |
| Self-levelling: | horizontal / vertical |
| Visible laser beam: | red |
| Self-levelling range: | ± 5° |
| Accuracy horizontal: | 1,0 mm / 10 m |
| Accuracy vertical: | 1,5 mm / 10 m |
| Working range without receiver: | Ø 30 m |
| Working area with FR 45: | Ø 400 m |
| Working area with FR 77-MM: | keine Angabe |
| Grade: | keine |
| Laser class: | 2 |
| Rotating speed rpm: | 600 |
| Operating time: | 20 h |
| Power supply: | NiMH |
| Dust / water protection: | IP 54 |
| Manual mode: | yes |

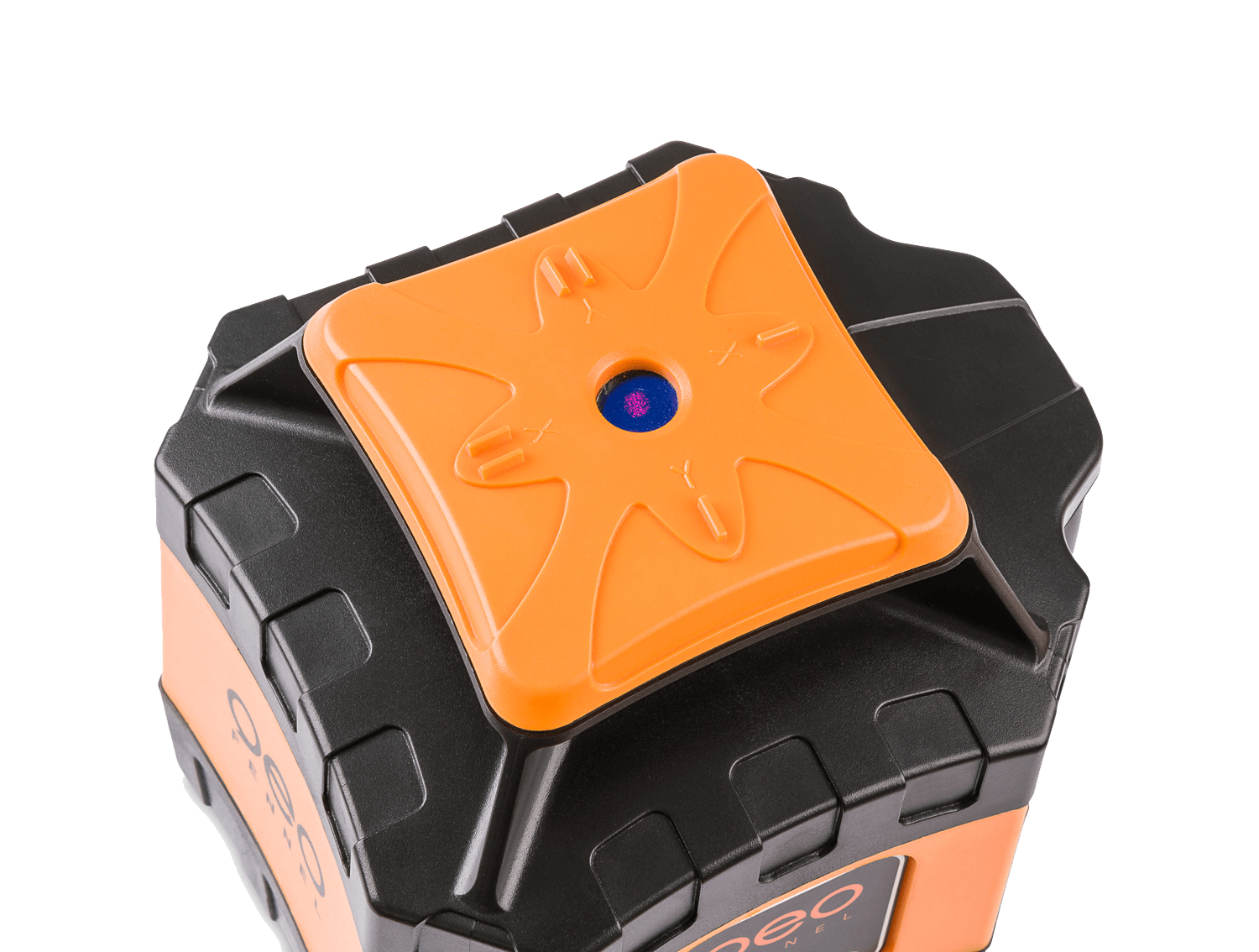

| 90° plumb beam up: | yes |
| Temperature range: | -20° to +50°C |
| TILT-function: | yes |
