Geo Fennel FL 245HV +

Enquire for Price

Quick Overview

Product information “FL 245HV +”

The latest development in our 245 Series

  • PowerSwitch-Technology: the power of a class 3R laser in a class 2 laser
  • Long distance working range outdoors and outstanding line visibility for indoor applications
  • IP 65 Class protection for all-weather conditions

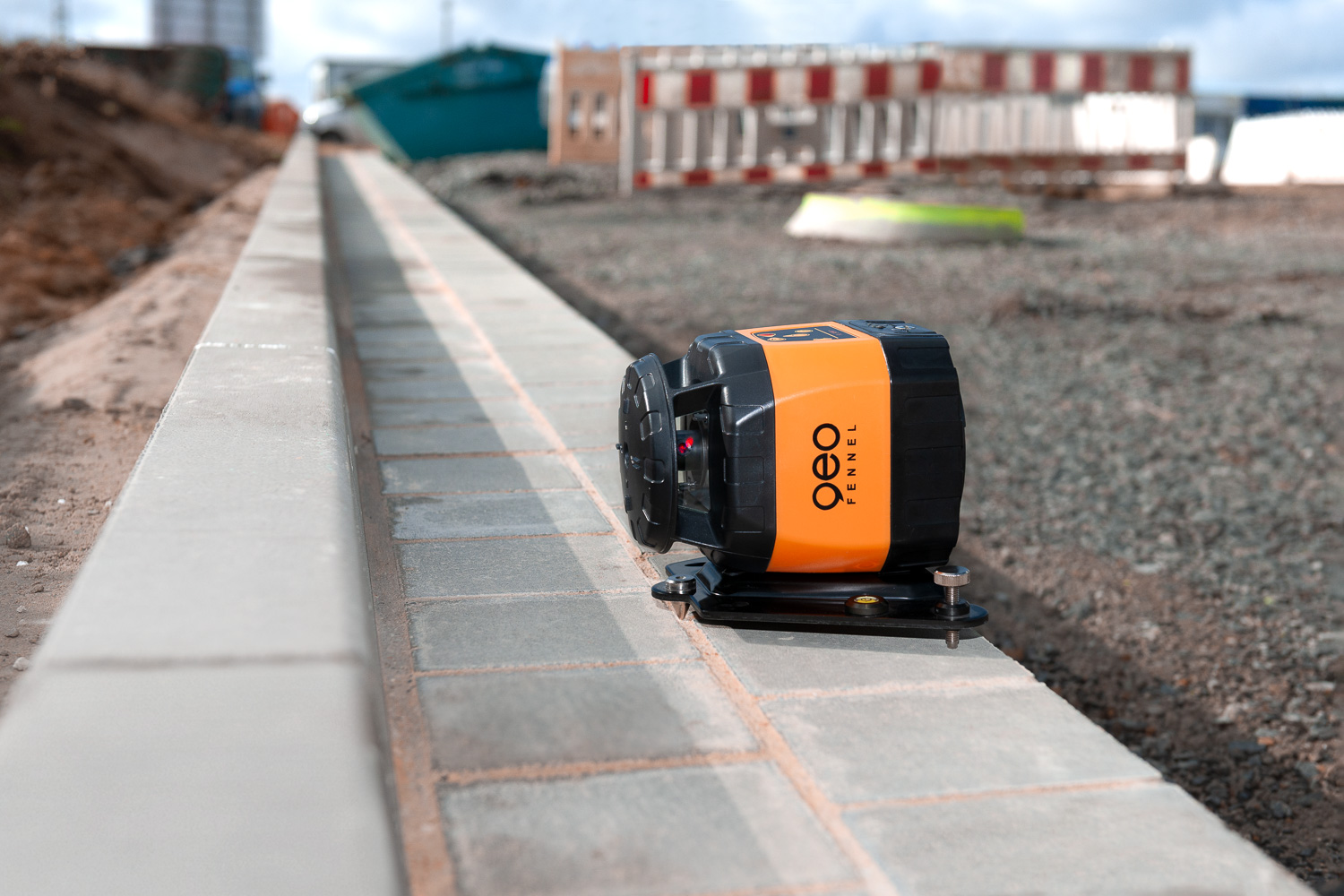

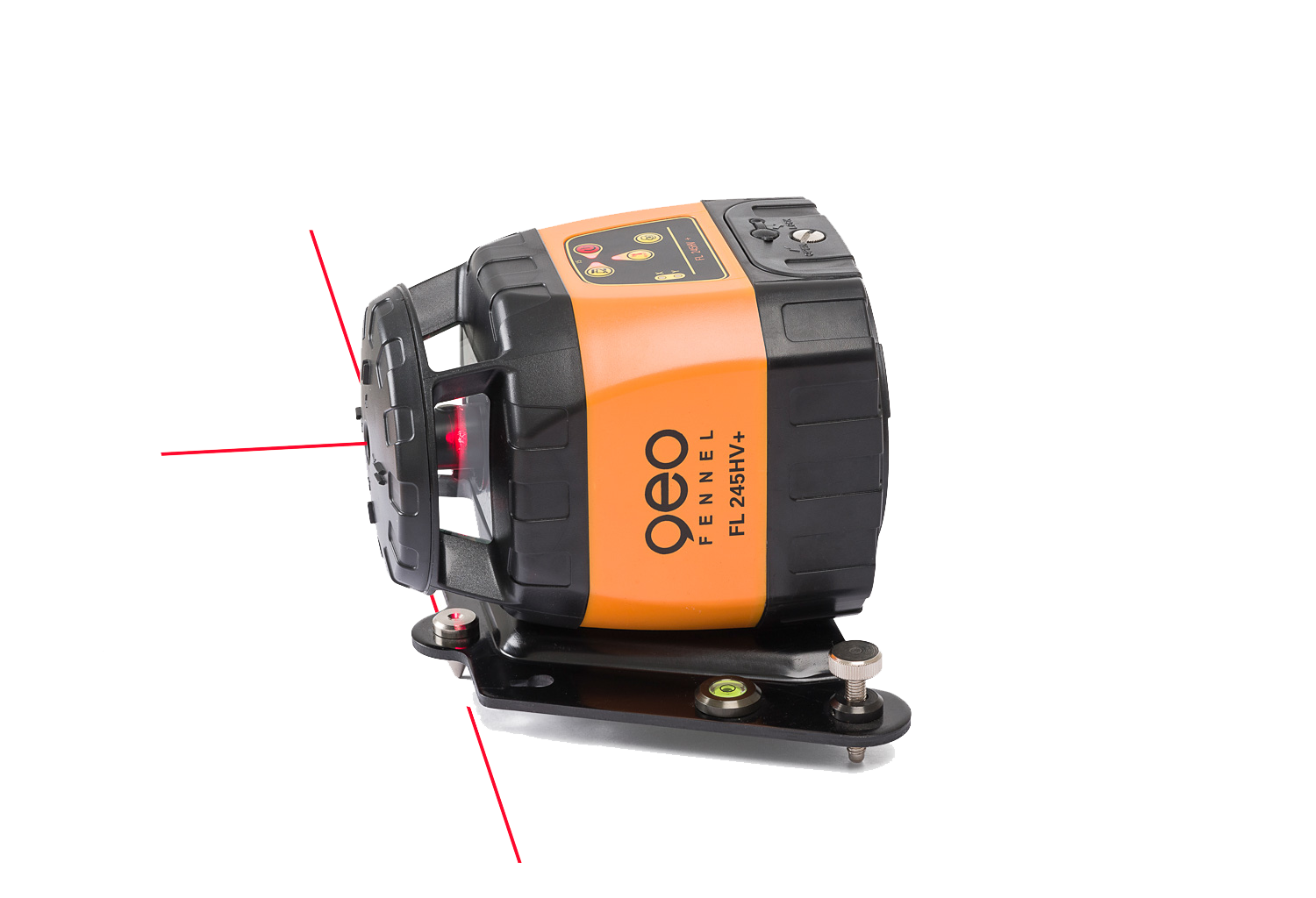

  • Now includes a fl oor mount for easy axis alignment in vertical/laydown mode

User-friendly operating concept

  • For the ultimate in ease-of-use the only control functions on the instrument power on/off the laser beam and the remote control
  • All additional functions including scanning and slope setting are accessed from the remote control

Highlights

  • Indoor use: Outstanding line visibility without using a receiver.
  • Versatile with rotating, scanning and point functions

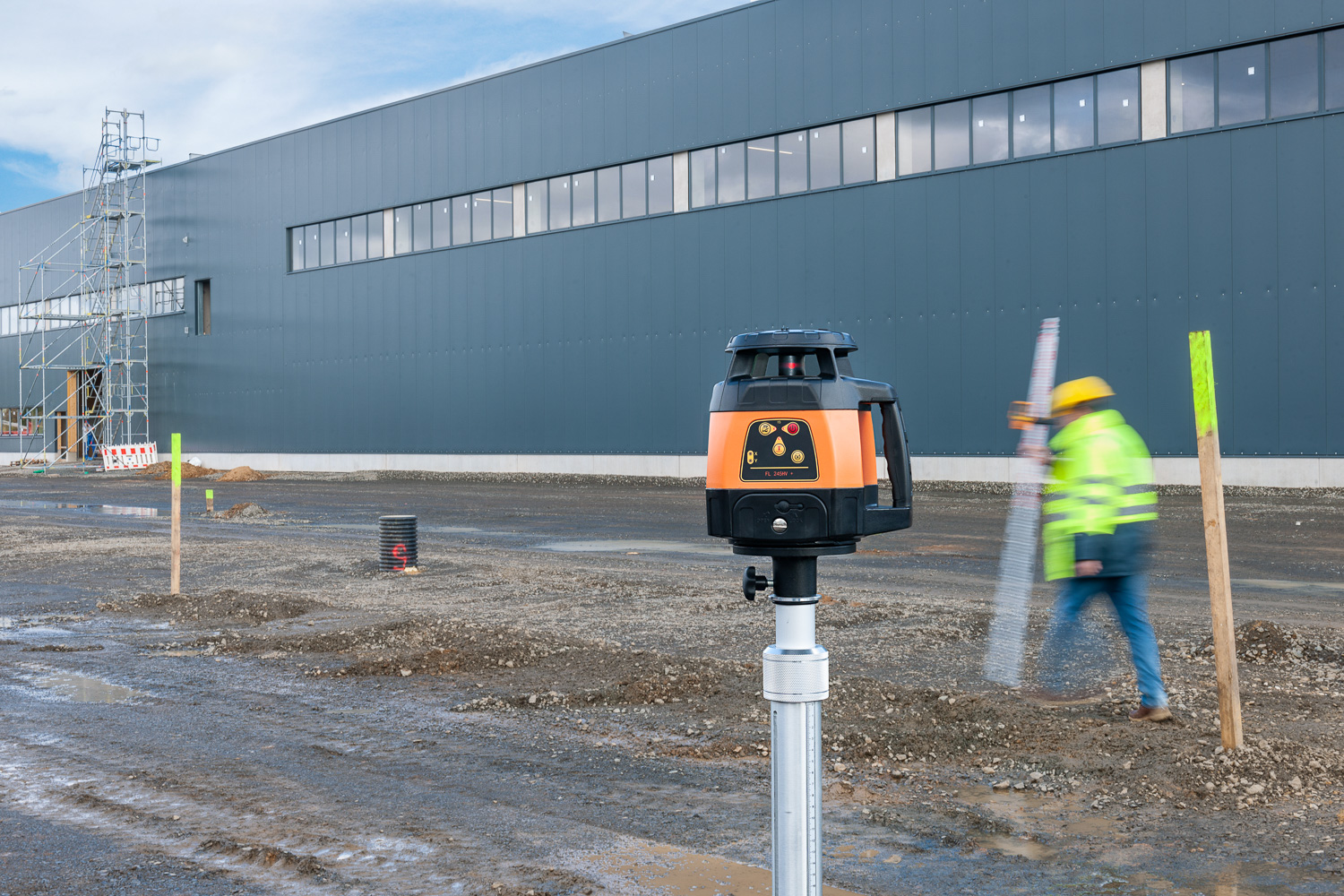

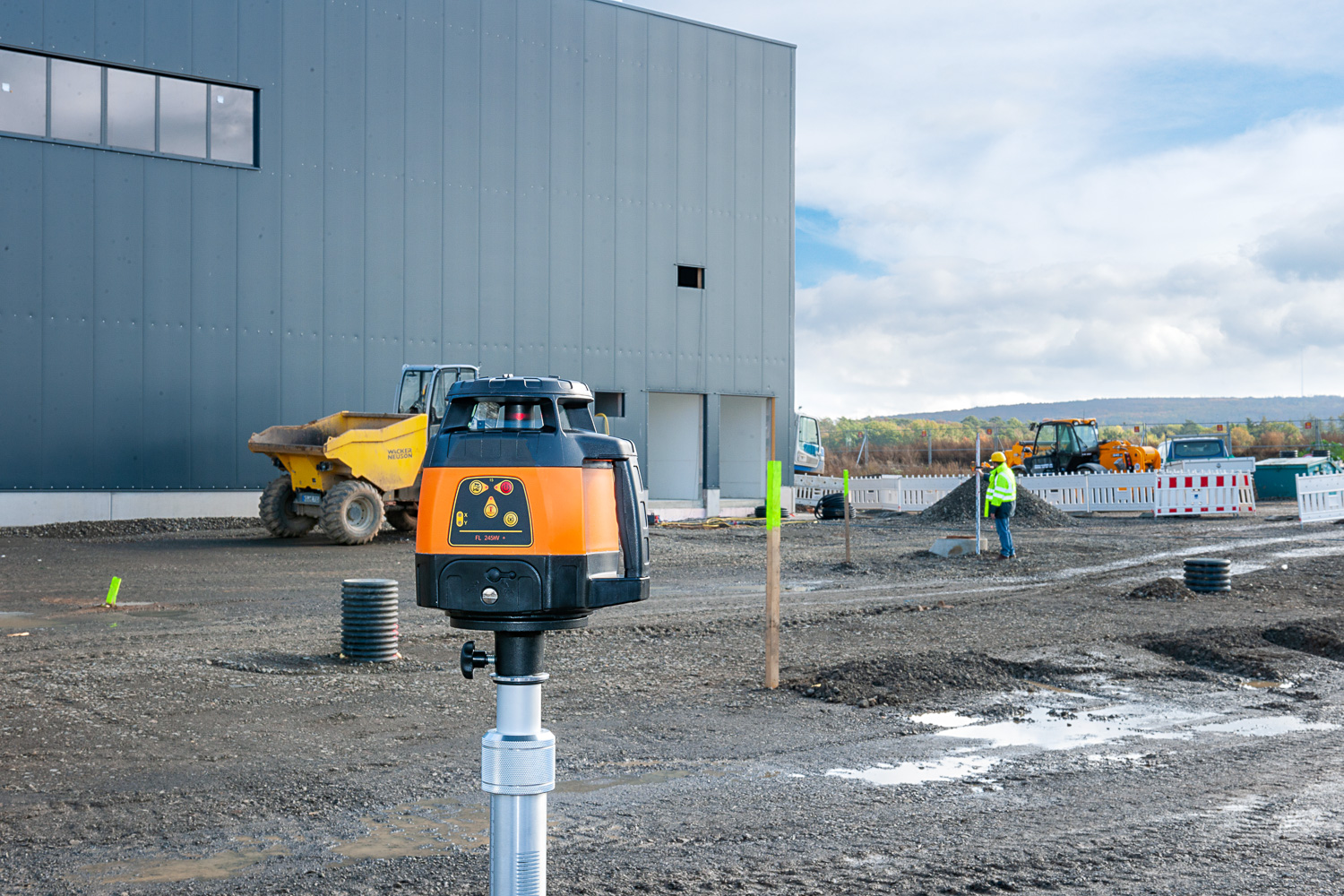

  • Outdoor use: IP 65 protection, long working range, TILT-Function,
  • Numerous accessories supplied as standard – check them out
Contact Us

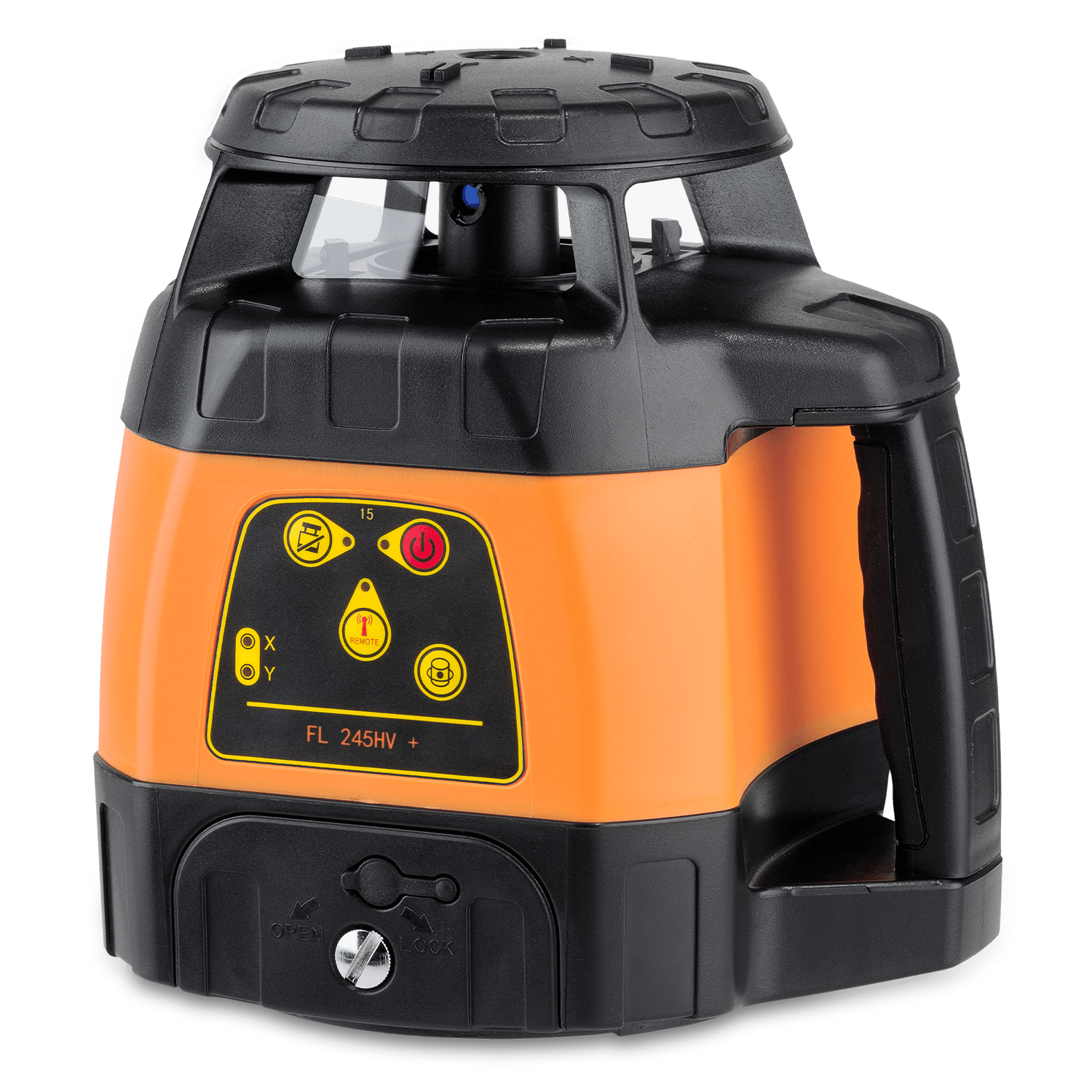

Geo Fennel FL 245HV +
Geo Fennel FL 245HV + - Image 2
Geo Fennel FL 245HV + - Image 3
Geo Fennel FL 245HV + - Image 4
Geo Fennel FL 245HV + - Image 5
Geo Fennel FL 245HV + - Image 6
Geo Fennel FL 245HV + - Image 7
Geo Fennel FL 245HV + - Image 8

Details

Features

  • Working range up to 1200m diameter (depending on receiver)
  • Dust / water protection IP 65
  • Variable scanning and laser point mode

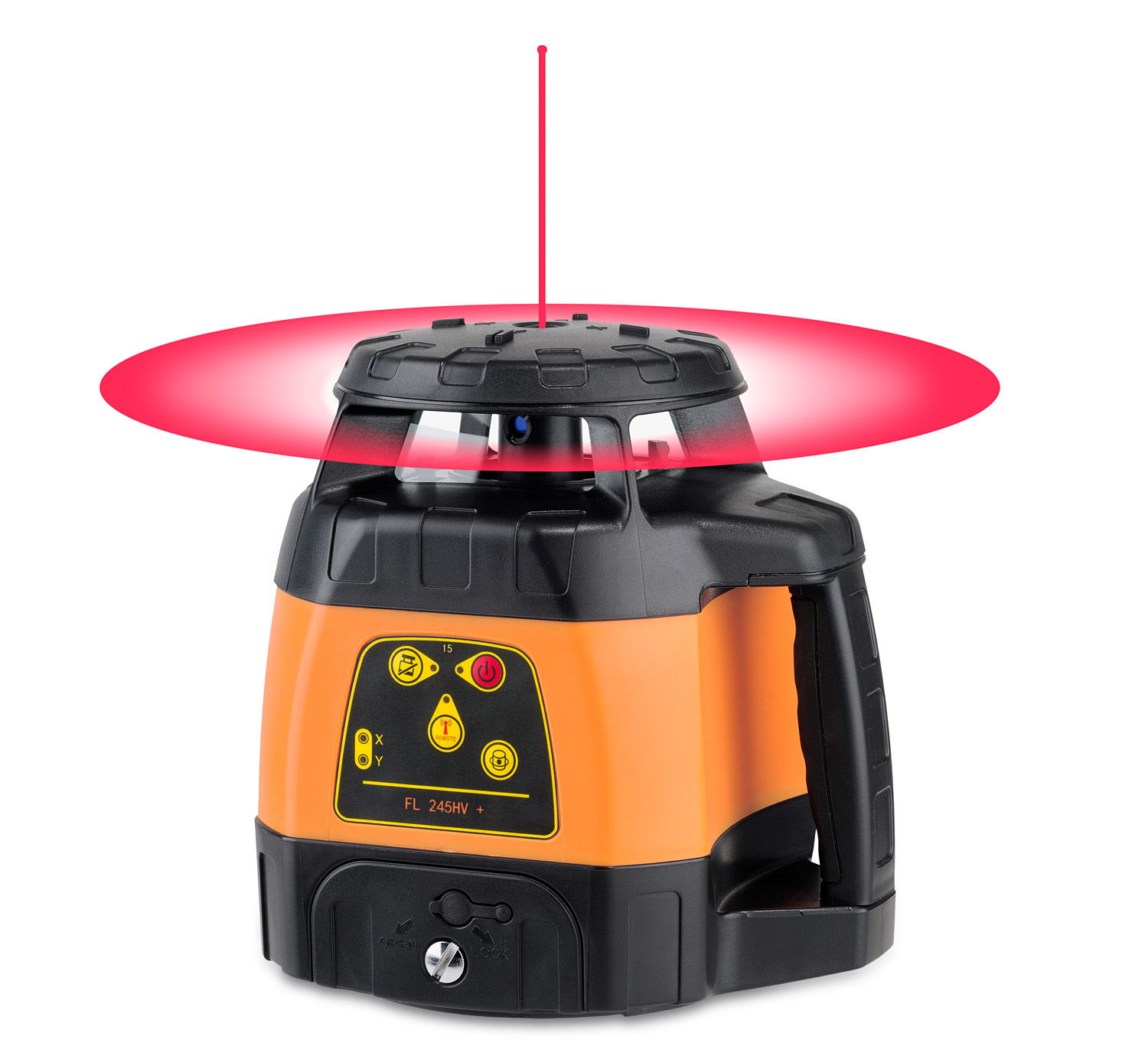

  • Permanent 90° plumb beam
  • Automatic TILT alarm function
  • Auto-shut-off when out of level
  • Manual slope setting of X and Y axis
  • Remote control function (on/off)

Receiver

  • FR 45
  • FR 77-MM
  • FR-DIST 30

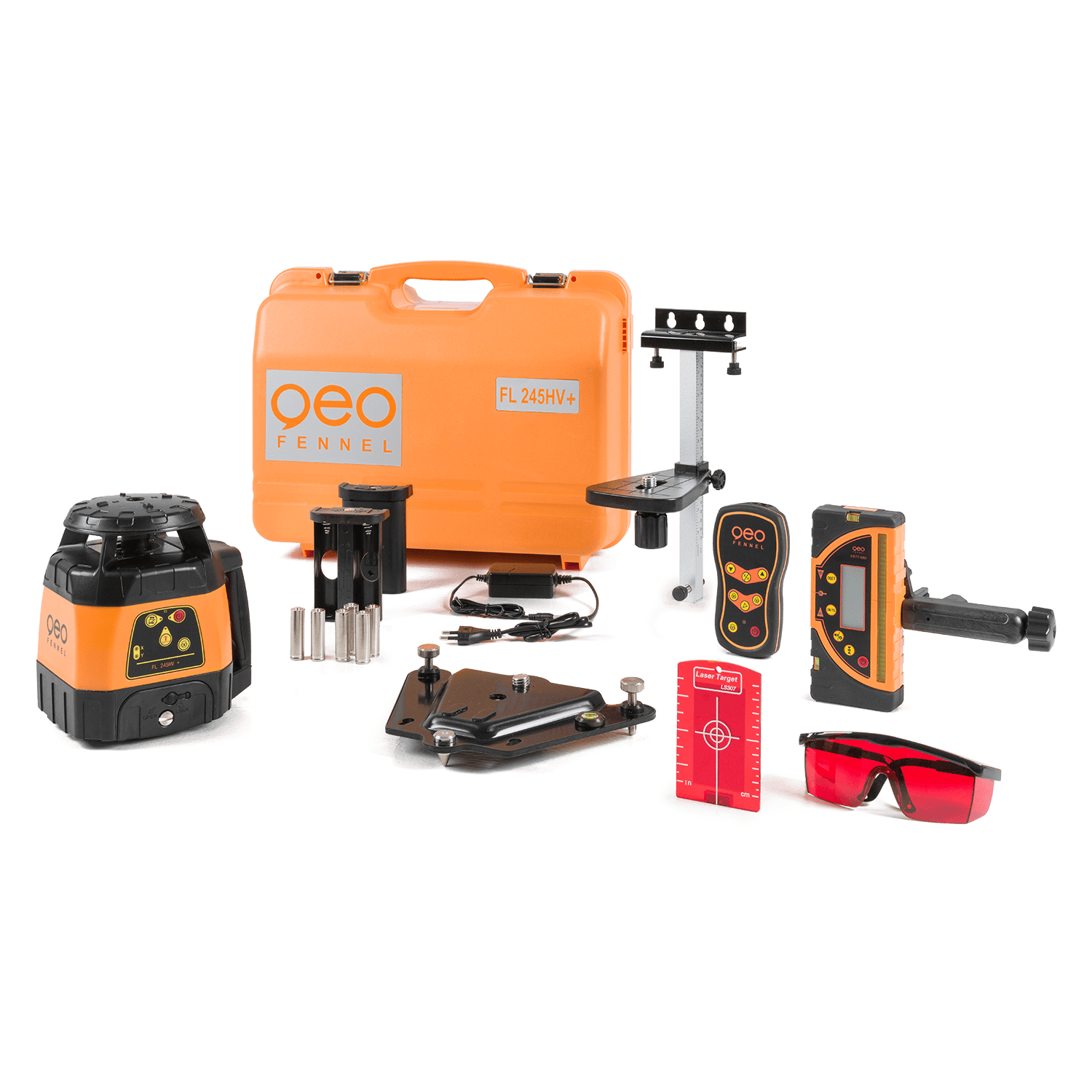

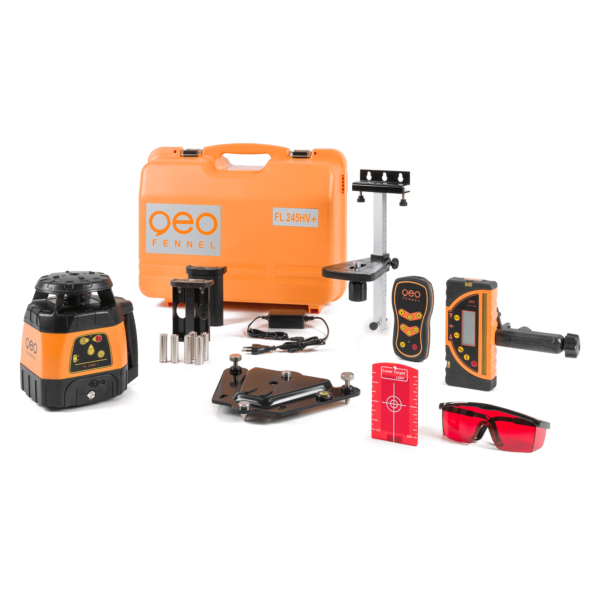

Included in scope delivery:

  • Receiver FR 45 with clamp

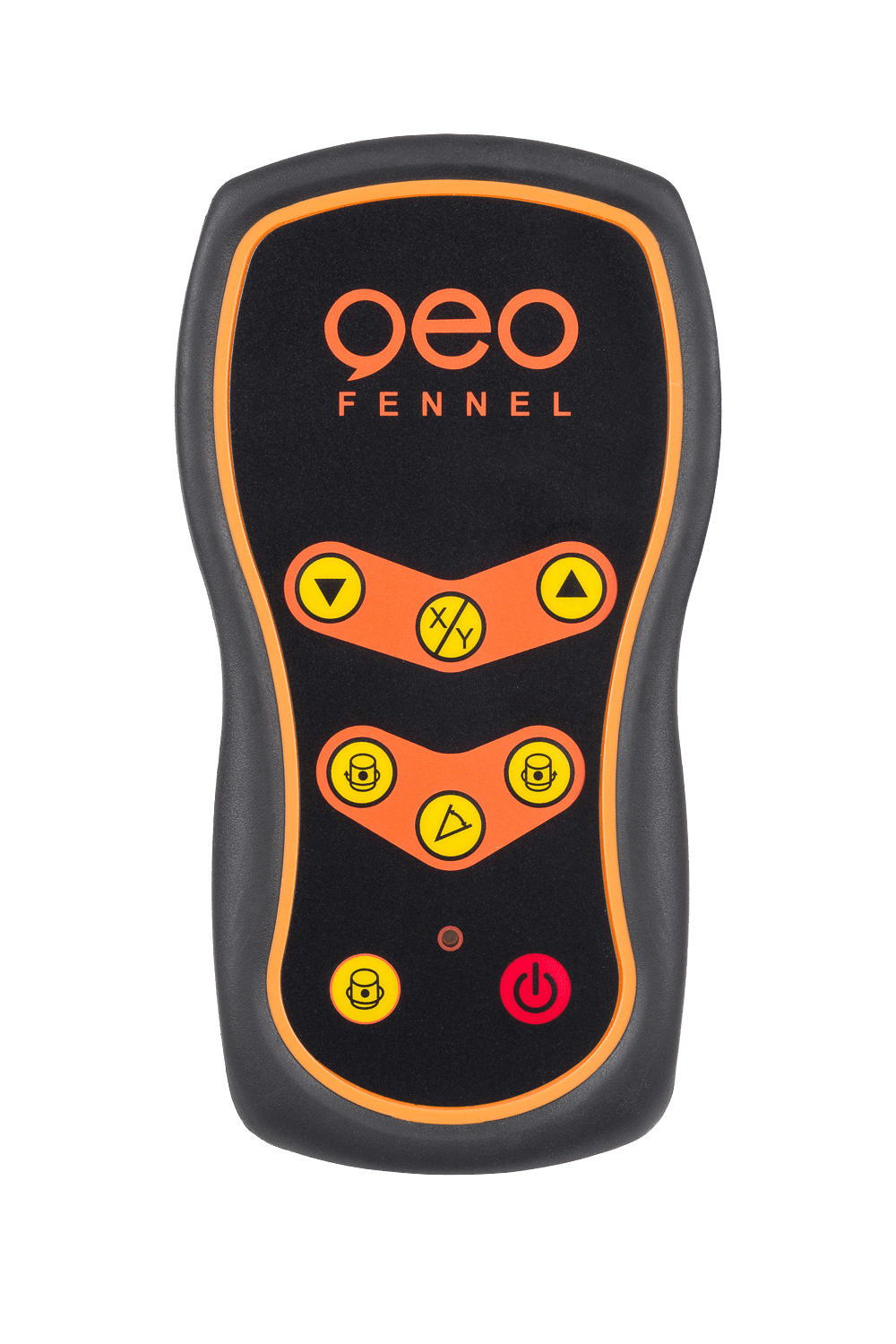

  • Remote control
  • Rechargeable battery (NiMH)
  • Intelligent battery charger
  • Wall mount
  • Floor mount
  • Battery case for alkaline batteries
  • Laser glasses
  • Magnetic target
  • Carrying case

Properties: “FL 245HV +”

Laser diode: red
Self-levelling: horizontal / vertical
Visible laser beam: red
Self-levelling range: ± 5°
Accuracy horizontal: 0,75 mm / 10 m
Accuracy vertical: 1,0 mm / 10 m
Working range without receiver: Ø 60 m
Working area with FR 45: Ø 1200 m
Working area with FR 77-MM: keine Angabe
Working range remote control: IR 100 m
Grade: manual
Slope setting manual X-Axis: ± 5° (± 9%)
Slope setting manual Y-Axis: ± 5° (± 9%)
Laser class: 2
Rotating speed rpm: 300, 800
Operating time: 26 h
Power supply: NiMH
Dust / water protection: IP 65
Axis direction vertical: yes
Scanning w/o receiver : 60 m (radius)
90° plumb beam up: yes
Temperature range: -20° to +50°C
Laser point mode: yes
TILT-function: yes
Remote control function (on/off): yes
Scanning: 2 step
