Details

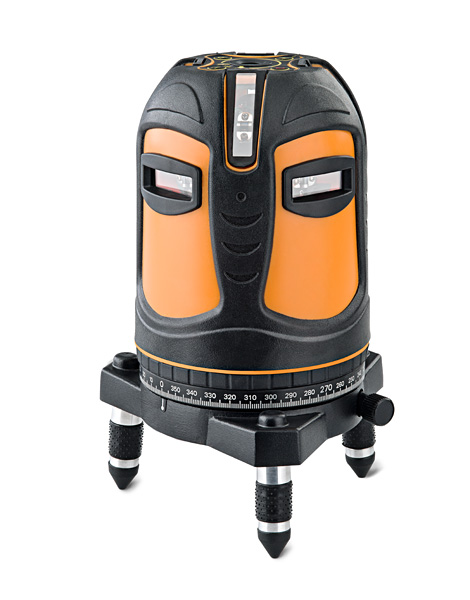

FL 70 SP is a Selection PRO product with special features.
- Outstanding visibility of the laser line
- Li-Ion battery technology
- High accuracy of +/- 1 mm / 10 m
- Motorized self-levelling cross line laser
- 4 vertical lines at 90° to each other, 360° horizontal line, plumb up cross, plumb down beam
- Quick self-levelling and extremly stable performance.
- Slope function: laserplane can be tilted by using the remote control
Features
- 5 laser crosses
- 4 vertical lines at 90° to each other
- 360° horizontal line
- Laser cross to the ceiling
- Plumb down beam
- Self-levelling function can be switched off
- Use with receiver FR 55 to extend working range up to 80 m
- Remote control for setting slopes
- Adjustable 360° circle
- Slow motion screw
- Audible and visible alarm when out of level
- Integrated floor tripod
- 5/8“ thread for use with standard tripod
Technical specifications
| Self-levelling range: | ± 3° |
| Accuracy: | ± 1 mm / 10 m |
| Laser diode: | red |
| Working range without receiver: | 30 m (radius) |
| Working range with receiver: | 200 m (Radius) |
| Dust / water protection: | IP 54 |
| Laser class: | 2 |
| Operating time: | 6 h (Full capacity utilisation) |
| Power supply: | Li-Ion |
| Temperature range: | -10°C to +45°C |
Included in scope delivery:
- Integrated floor tripod
- Remote control
- Li-Ion batteries and battery charger
- Magnetic target
- Laser glasses
- Adapter for tripod connection
- Compartment for alkaline batteries
- Container
