Details

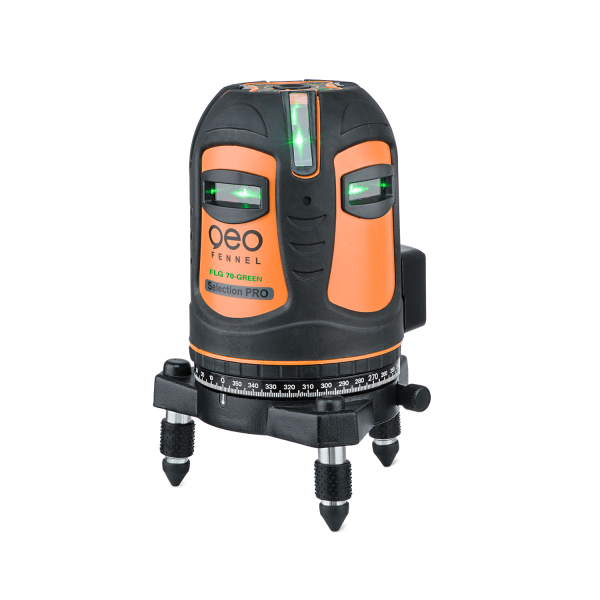

FLG 70-GREEN SP is a Selection PRO product with special features.
Multi-line laser for highest accuracy and measurement requirements.
- High accuracy of ± 1 mm / 10 m, motorized self-levelling
- Latest green laser technology with fine and clear line visibility
- Quick self-levelling and extremly stable performance.
- Slope function: laserplane can be tilted in coarse and fine steps by use of remote control
- Deactivation of remote control function at the laser, thus no disturbance of leveled/inclined plane from outside
- 4 vertical lines at 90° to each other, 360° horizontal line, plumb up cross, plumb down beam – can be switched on/off in groups
Features
- 4 vertical lines at 90° to each other
- 360° horizontal line
- Laser cross to the ceiling
- Plumb down beam
- Remote control for setting slopes in coarse and fine steps
- COARSE: press the arrow button at any 1 x = one 3-mm-step in a distance of 15 m
- FINE: press the arrow button at any 1 x = one 1-mm-step in a distance of 15 m
- Switchable remote control function at the laser
- Use with receiver to extend working range
- Self-levelling function can be switched off
- Integrated floor tripod
- Adjustable 360° circle
- Slow motion screw
- Audible and visible alarm when out of level
- 5/8“ thread for use with standard tripod
Technical specifications
| Self-levelling range: | ± 3° |
| Accuracy: | ± 1 mm / 10 m |
| Laser diode: | green |
| Working range without receiver: | 30 m (radius) |
| Working range with receiver: | 80 m (radius) |
| Dust / water protection: | IP 54 |
| Laser class: | 2 |
| Operating time: | 4 – 8 h |
| Power supply: | Li-Ion |
| Temperature range: | -10°C to +45°C |
| Weight (instrument with battery): | 1,6 kg |
Included in scope delivery:
- Li-Ion batteries
- International charger
- Adapter for in-car charging
- Compartment for alkaline batteries
- Remote control
- Adapter for tripod connection
- Magnetic target
- Laser glasses
- Container
