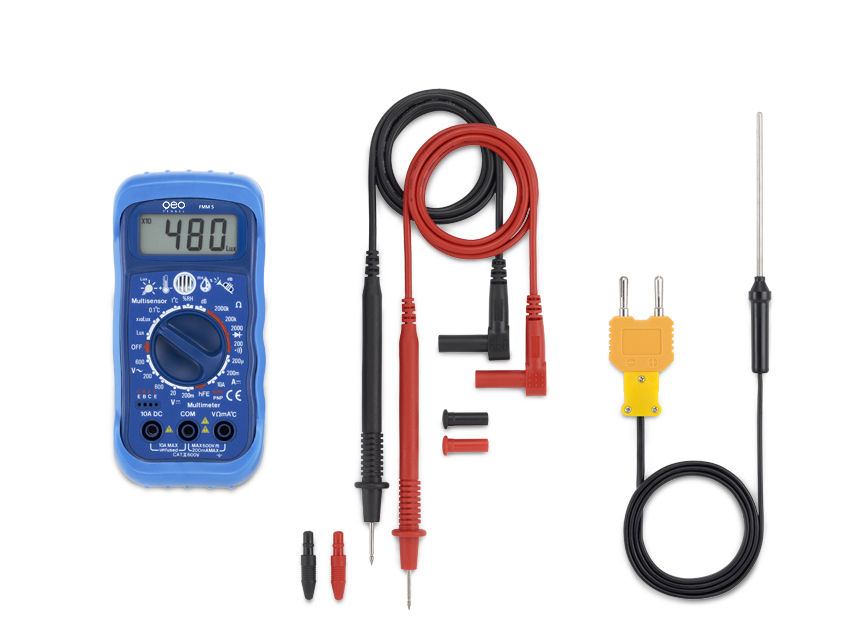

5 in 1 Digital Multimeter FMM 5

Contact Us
Geo Fennel - FMM 5

Details

FEATURES
Trades and Tasks
  • Universal measuring device for:
  • DC, AC Voltage
  • DC current
  • Resistance of transistor hFE
  • Diode and continuilty test
  • Light, sound, humidity and temperature Measuring
  • Overload protection
TECHNICAL DATA
Max. Range Resolution Accuracy
Multi-Meter d=digit
Voltage DC 600V 0,1 mV +/- 0,5% +/- 2d
Voltage AC 600V 100 mV +/- 1,2% +/- 10d
Current DC 10A 0,1 uA +/- 1,0% +/- 2d
Resistance 20MΩ 0,1 Ω +/- 0,8% +/- 2d
Environmental
Light 20,000 Lux 0,1 Lux +/- 0,5% +/- 10d
Sond 100 dB 0,1 dB  +/- 3,5 dB
Humidity 95 % RH 0,1 % RH +/- 5 RH
Temperature -20°C to +200°C 0,1 °C +/-3% +/- 1d
-20°C to +1300°C +1300°C    0,1°C +/-3% +/-5d
1400°F 0,1°F +/-3% +/-2d
Dimensions 121 x 60 x 50 mm
Weight 0,28 kg
