Geo Fennel – FTA 1

Enquire for Price

Quick Overview

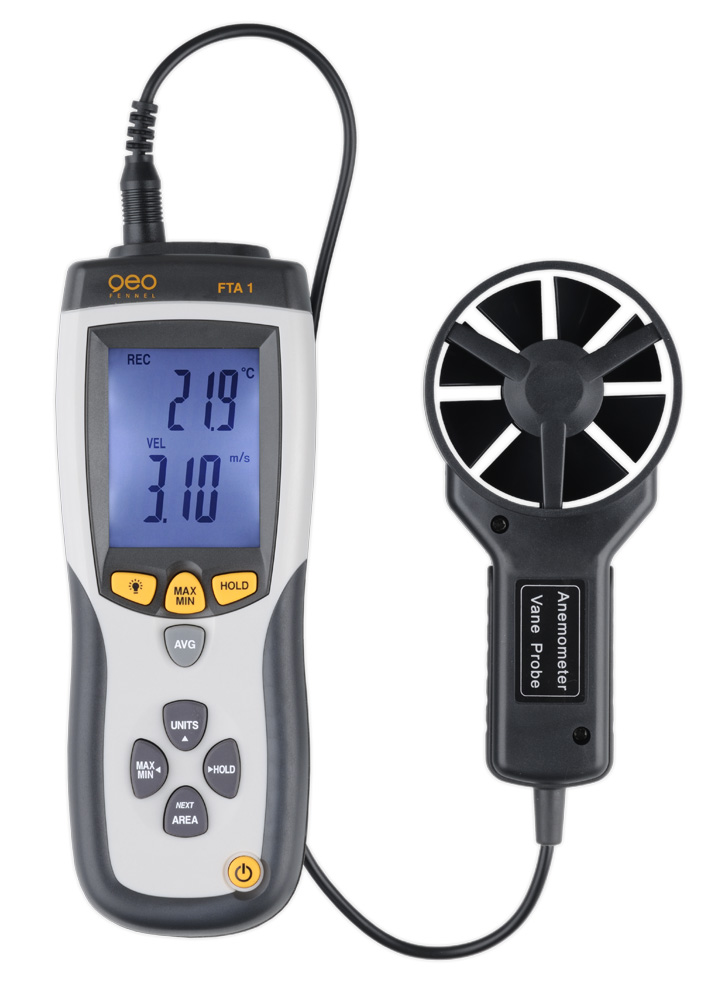

A professional remote vane thermo-anemometer for measuring air velocity, air flow and temperature.

Contact Us
Geo Fennel - FTA 1

Details

FEATURES
  • Simultaneous display of air flow and air velocity
  • Measurement of ambient temperature
  • Large easy-to-read LCD display with switchable backlight
  • Maximum/minimum function
  • 20 average readings for air flow and air velocity
  • Data HOLD function
  • 16 memory locations for area (8 CMM, 8 CFM)
  • Remote vane with low-friction bearing (65 mm dia.) for accurate results
TECHNICAL DATA
Air velocity Measuring range Resolution Accuracy
m/s 0.40 – 30.00 0,01 ±3% ±0,20 m/s
ft/min 80 – 5900 1 ±3% ±40 ft/min
km/h 1,4 – 108,0 0,1 ±3% ±0,8 km/h
mph 0,9 – 67,0 0,1 ±3% ±0,4 mph
knots 0,8 – 58,0 0,1 ±3% ±0,4 knots
Air flow Measuring range Resolution Accuracy
CMM (m³/min) 0 – 999900 0,001 0 – 999,9 m²
CFM (ft³/min) 0 – 999900 0,001 0 – 999,9 ft²
Air temperature Measuring range Resolution Accuracy
°C -10° – +60°C 0,1 °C ±2 °C
°F 14° – 140°F 0,1 °F ±4 °F
Various
Power supply 1 x 9 V alkaline battery
Operating time 80 h
Dimensions 75 x 203 x 50 mm
Weight 280 g
