Details
OUTSTANDING LASER VISIBILITY

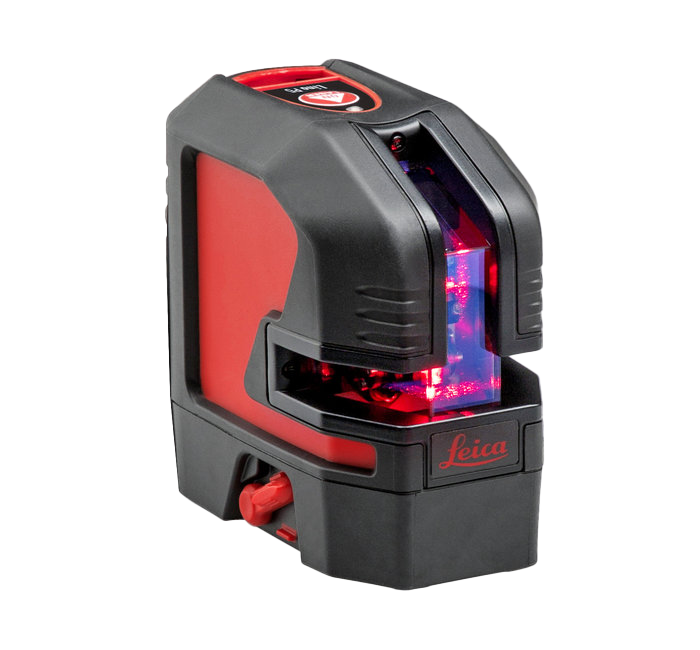

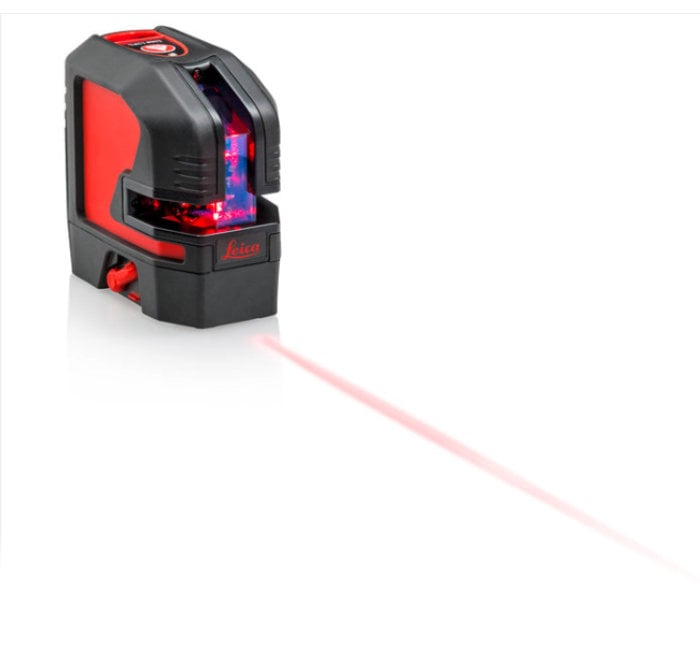

The high-precision optics of the Leica Lino L2 ensure outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees.
SELF-LEVELLING
The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.
SMART ADAPTERS
Smart adapters allow for quick and precise positioning. You can set up rotatable adapters over edges and profiles, or easily attach them to iron pipes, tracks and bars.
TRIPLE POWER CONCEPT
The Leica Lino L2’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 44 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.
RUGGED DESIGN
The Leica Lino L2 is dust and spray water protected to IP 54 standards. This makes it a rugged instrument suitable for all your jobs.
SPECS
| Leica Lino L2 | Leica Lino L2 Starter Kit | |
| Range* | 25 m / 85 ft | 25 m / 85 ft |
| Range with laser receiver* | 80 m / 265 ft | 80 m / 265 ft |
| Levelling accuracy | ± 0.2 mm/m / ± 0.0079 in @ 33ft | ± 0.2 mm/m / ± 0.0079 in @ 33ft |
| Self-levelling range | ± 4° | ± 4° |
| # of laser lines | 2 | 2 |
| Beam direction | vertical, horizontal | vertical, horizontal |
| Horizontal line accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
| Vertical line accuracy | ± 0.3 mm/m / ± 0.0118 in @ 33ft | ± 0.3 mm/m / ± 0.0118 in @ 33ft |
| Laser type | 635 nm/class 2 | 635 nm/class 2 |
| Battery type | Li-Ion rechargeable (or AA 3 x 1.5V) | AA 3 x 1.5V |
| Operating time** | up to 44 h (Li-Ion) | up to 13 h (AA) |
| Protection class | IP54 | IP54 |
| Dimensions | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in | 110 x 60 x 100 mm / 4.33 x 2.36 x 3.94 in |
| Weight with batteries | 530 g / 1.17 lbs | 500 g / 1.10 lbs |
| Tripod thread | 1/4″ | 1/4″ |
| Scope of delivery | Leica Lino L2, TWIST 250, Li-Ion battery pack, charger, Alkaline battery tray, target plate, hard case |
Leica Lino L2, TWIST 250, Alkaline battery tray, batteries, target plate, soft pouch |
*depending on lighting conditions
**depending on laser mode
In The Box:
- Leica Lino L2
- Quick start guide
- Rugged Case
- Li-Ion battery pack incl. charger and plugs
- Alkaline battery tray
- Laser target

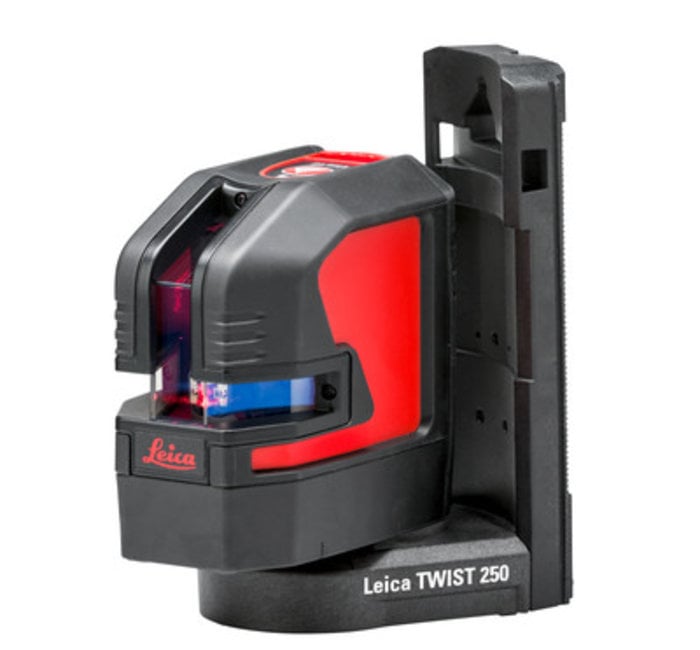

- TWIST 250 magnetic multi functional adapter
- Safety instructions, Calibration certificate, Warranty card
