Details

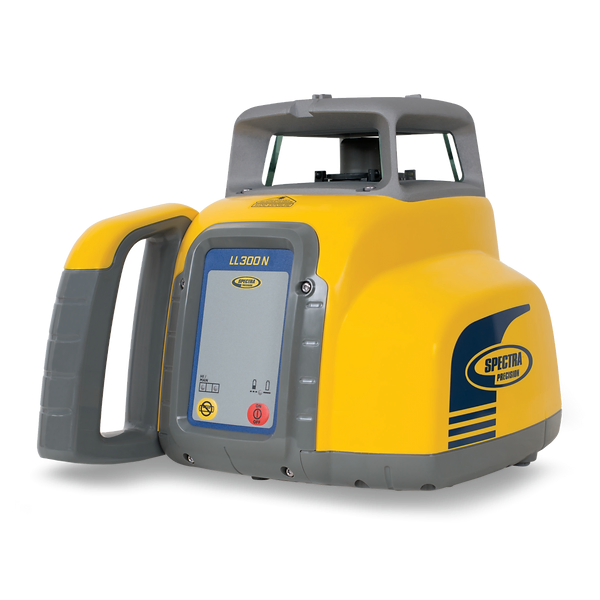

The LL300N Laser Level features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop.
Features & Benefits
- Increases Productivity – with fast setups, fewer mechanical parts, and automatic self-leveling
- One Person Elevation Control – with 1,650 ft (500 m) diameter range increases productivity
- Maintains Performance – even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
- Durable Design – reduces downtime due to drops and tripod tip-overs
Increases Flexibility – with remote control slope option - Comes Standard – with HL450 digital readout receiver and other configurations are available
- Kits Available – with system case which contain laser, receiver, tripod and grade rod
SPECS
| Laser Source | 650 nm, Class 2, <3,4mW |
| Laser Accuracy | ±3/32 in at 100 ft (±2.2 mm at 30 m) |
| Compensation Method | Electronic self-leveling / ±5 degrees |
| Operating Range | 1,650 ft (500 m) diameter |
| Out of Level Warning | Rotor stops, laser shuts off, red out-of-level LED flashes |
| Rotation Speed | 600 RPM |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Battery Life |
Rechargeable – 45 hours Alkaline – 90 hours |
| Size |
10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm) |
| Dust & Waterproof |
Yes. IP 66 |
| Weight |
5.9 lbs (2.7 kg) |
| Warranty |
5 Years |
