Details
Now with receiver FR 77-MM with mm-indication as standard
- Fully automatic self-levelling in horizontal, vertical and grade
- Slope functions horizontal: Digital grade setting of X and Y axis up to ±10 % Manual slope setting of X and Y axis
- Slope functions vertical: Direction of X axis can be set up to ±10 % with Y axis self-levelled Direction of X and Z axis can be set manually
- Automatic TILT function
- VWS function (Vibration-Wind-Security) Rotation will not be stopped due to light ground and wind vibrations (combined with TILT function)
- Fully functional 9-channel 2-way RF remote control
- Li-Ion battery technology
Features
- Dual Axis Laser
- Horizontal and vertical
- Digital grade adjustment
- Monitored grade
- TILT function
- VWS function
- 90° beam to zenith
- Illuminated display
- 2 way RF remote control
- Manual function
- 4-step scanning function
- Operation with rechargeable Li-Ion or alkaline batteries
- Dust / water protection IP 66
Receiver
- FR 77-MM
- FR DIST 30
Included in scope delivery:
- Receiver FR 77-MM with clamp
- 2-Way RF Remote control
- Li-Ion battery & charger
- Vertical mount
- Telescope
- 360° horizontal fine adjustment bracket
- Container

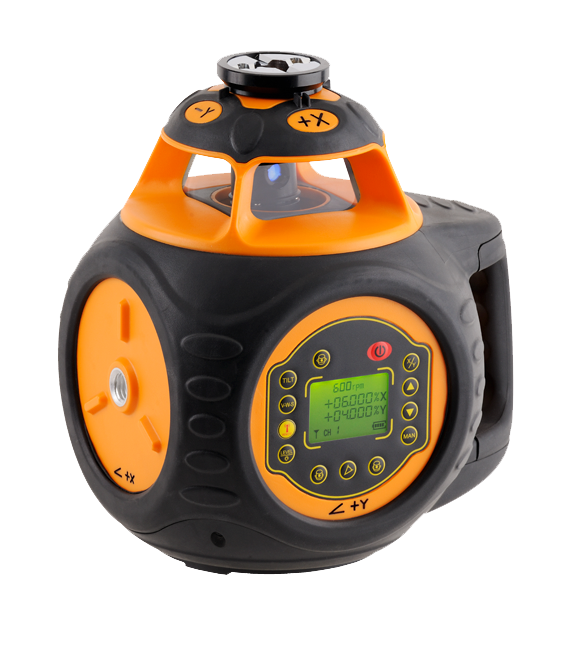

Properties: “FL 505HV-G”
| Laser diode: | red |
| Self-levelling range: | ± 8° |
| Accuracy horizontal: | ± 0,5 mm / 10 m |
| Accuracy vertical: | ± 1,0 mm / 10 m |
| Working range without receiver: | Ø 40 m |
| Working area with FR 77-MM: | Ø 400 m |
| Working range remote control: | 150 m |
| Grade: | digital |
| Horizontal slope setting x-Axis: | ± 10.000% |
| Horizontal slope setting Y-Axis: | ± 10.000% |
| Vertical slope setting X axis: | ± 10,000 % |
| Vertical slope setting Y(Z) axis: | horizontal self-levelled |
| X and Y-Axis: | ∑ ± 14 % |
| Laser class: | 2 |
| Rotating speed rpm: | 300, 600, 1100 |
| Operating time: | 40 h |
| Power supply: | Li-Ion, intelligent, Alkaline |
| Dust / water protection: | IP 66 |
| Weight (instrument only): | 3,85 kg |
| Remote control channels: | 9 |
| Rotating w/o receiver Ø: | Ø 40 m, Ø 60 m |
| Scanning w/o receiver : | 60 m (radius) |
| Scanning range: | 0°, 10°, 45°, 90°, 180° |
| Temperature range: | -10°C to +50°C |
